2 Way Power Dividers

PD2 SMA Series

FEAUTURES

• Frequency 1 to 40000MHz
• Low Loss
• Repeatable performances
• Low Cost

DESCRIPTION

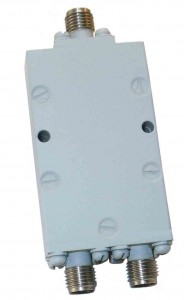

TMI’s 2 Way Power Dividers are low cost, High performance stripline components, Using the latest state of the art CAD Systems. This enables TMI to meet a wide variety of specifications without high development cost.

ELECTRICAL SPECIFICATIONS

2way1


P/N
(1)
Frequency
Range
(GHz)
Insertion
Loss
Max. (db)
(2)
Isolation
Min.
(db)
VSWR
IN/OUT
Max.
(3)
Input
Power
(Watts Max.)
Phase
Balance
±° (Max)
Amplitude
Balance
± (db)

Test Data
PD2-2535000.25-3.51.1171.5/1.53030.25PD2-253500
PD2-051000.5-1.00.25221.2/1.153020.20PD2-05100
PD2-052000.5-2.00.30201.4/1.23020.20PD2-05200
PD2-0560000.5-6.00.90201.5/1.53030.30PD2-056000
PD2-056000-S30.5-6.01.1181.5/1.53020.30PD2-056000-S3
PD2-0518000.50-18.02.0181.5/1.53050.40PD2-051800D
PD2-075300.75-3.00.35201.3/1.33020.20PD2-07530
PD2-120001.0-2.00.25221.2/1.23020.20PD2-12000
PD2-14001.0-4.00.30201.4/1.23020.20PD2-14000
PD2-113001.0-13.00.80201.5/1.53020.20PD2-11300
PD2-240002.0-4.00.25201.3/1.23020.20PD2-24000
PD2-280002.0-8.00.30201.5/1.33020.20PD2-28000
PD2-218002.0-18.00.60201.4/1.43020.20PD2-21800
PD2-312003.0-12.00.40201.5/1.43020.20PD2-31200
PD2-480004.0-8.00.35201.3/1.23020.20PD2-48000
PD2-418004.0-18.00.60 181.4/1.43020.20PD2-41800D
PD2-618006.0-18.00.60201.5/1.53020.20PD2-61800
PD2-812008.0-12.00.50201.4/1.33020.20PD2-81200
PD2-1218012.0-18.00.60201.5/1.53020.20PD2-12180
PD2S-1240012.0-40.01.0151.6/1.61050.25PD2S-12400

1-Bandwidth Available up to 36:1 ratio.
2-Higher Isolation Available
3-Up to 200WCW Available.

Custom frequency bands and optimized specifications available.

Notes:
Power rating is for load VSWR better than 1.20:1.
BNC, TNC, N, and F connectors available.
