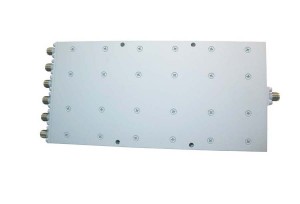

6 Way Power Dividers

PD6 SMA Series

FEAUTURES

• Frequency 1 to 40000MHz
• Low Loss
• Repeatable performances
• Low Cost

DESCRIPTION

TMI’s 6 Way Power Dividers are low cost, High performance stripline components, Using the latest state of the art CAD Systems. This enables TMI to meet a wide variety of specifications without high development cost.

ELECTRICAL SPECIFICATIONS

Six Way Power Divider
















P/N
(1)
Frequency
Range
(GHz)
Insertion
Loss
Max. (db)
(2)
Isolation
Min.
(db)
VSWR
IN/OUT
Max.
(3)
Input
Power
(Watts Max.)
Phase
Balance
±° (Max)
Amplitude
Balance
± (db)

Test Data
PD6-118001 to 18.02.5152.1/1.730 WCW@ 2:1 Load100.40PD6-11800
PD6-618006 to 18.01.0151.830 WCW @ 1.5:1 Load50.40PD6-61800

1-Bandwidth Available up to 36:1 ratio.
2-Higher Isolation Available
3-Up to 200WCW Available.

Custom frequency bands and optimized specifications available.

Notes:
Power rating is for load VSWR better than 1.20:1.
BNC, TNC, N, and F connectors available.
